TECHNICAL DATA SHEET – Art. 1333 ISOLA MODULARE A 3 (65 Lt.)

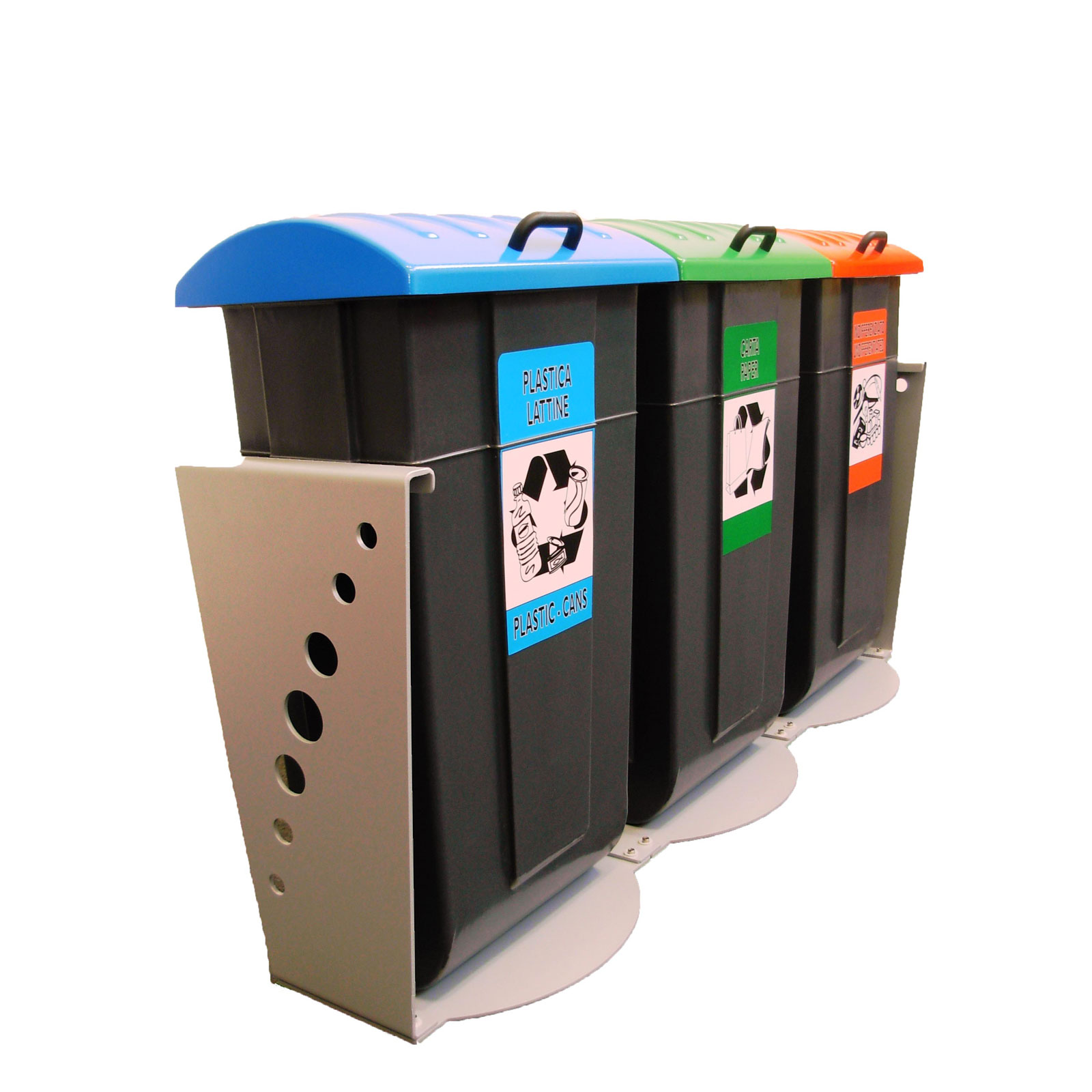

The Isola Ecologica is composed of 3 modular units, each with a metal base (5 mm thick) with dimensions of 37.5×48 cm and a lid with handle.
Each module contains a 65-liter container with a truncated rectangular conical base. The top of the container measures 30×45 cm, and the height is 75 cm. These containers are made from rotationally molded polyethylene, providing excellent resistance to impacts, aging, and color fading.
The lids are made of thermoformed ABS, painted with high-quality two-component paints. The metal bases are treated with cataphoresis and epoxy powder-coated. For outdoor use, bases can be hot-dip galvanized upon request. The bases are connected by a metal joint measuring 21×6 cm, 5 mm thick.
The system includes metal terminal wings at both ends, 5 mm thick, adding weight and contributing to the overall aesthetic. While ground fastening is possible, it is not required for stability.
Minimum Characteristics and Dimensions:
Capacity per container: approx. 65 liters
Height from the ground: approx. 88 cm
Maximum depth: approx. 43 cm
Weight of metal base: approx. 6 kg
Weight of a single module: approx. 13 kg
Weight of each terminal wing: approx. 7 kg
Recommended bag size: 70×110 cm
Overall footprint: 43×150 cm
